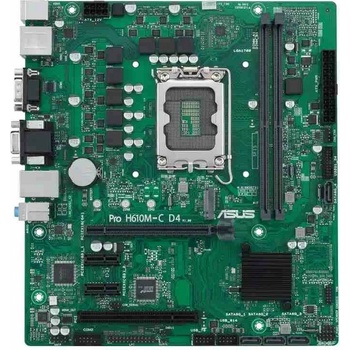

Asus PRO H610M-C D4-CSM

Základná doska H610 pre firmy formátu Micro-ATX s lepším zabezpečením, spoľahlivosťou, možnosťou správy a servisom

Pätica Intel® LGA 1700:

• Program ASUS CSM: Stabilné dodávky základných dosiek, oznámenie o konci životnosti a IT softvér pre podnikové základné dosky
• ASUS Control Center Express: Integrovaný softvér pre monitorovanie a IT správu, ktorý zjednodušuje správu systému na podnikovej úrovni
• Vylepšené zabezpečenie systému: Samoobnovujúci sa systém BIOS pre zabezpečenie počítačov
• Konzistentný a spoľahlivý výkon: Špičkové komponenty a prísne testovanie, ktoré napomáha zaistiť odolnosť v náročných podmienkach
• Efektívna správa a prispôsobenie: Protokol udalostí a komerčná sada BIOS umožňujúca jednoduchú údržbu
• Lepší servis: Diagnostický Q-LED displej a COM debug header pre uľahčenie procesov zostavovania a podpory

Špecifikácia:

CPU

Intel® Socket LGA1700

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
• * Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP) *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics 1 x DisplayPort** 1 x D-Sub port 1 x HDMI® port***

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• * Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• ** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot

Intel® H610 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI slot

Storage

Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports

Ethernet 1 x Intel® 1Gb Ethernet

ASUS LANGuard

USB

Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header

Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Storage related 1 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header( with Apm IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

Special Features

• ASUS EZ DIY
  • Box Headers

Bespoke Motherboard Design & Business Focused Features

• Q-LED Core
• ASUS Self Recovering BIOS
• ASUS Event Log
• ASUS Commercial BIOS kit
• Anti-Moisture Coating
• 24/7 Reliability
• Overcurrent Protection

Software Features

Software Features ASUS Exclusive Software

IT Management software supported - ASUS Control Center Express(ACCE)

BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables 2 x SATA 6Gb/s cables

Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package

Installation Media 1 x Support DVD

Documentation 1 x ACC Express Activation Key Card 1 x User guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor mATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22 cm )
