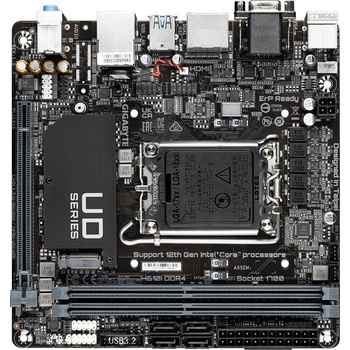

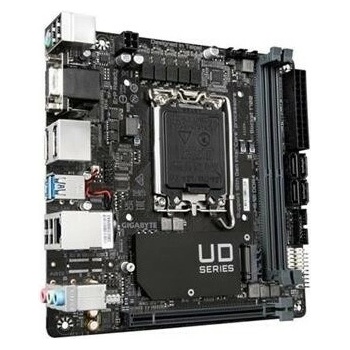

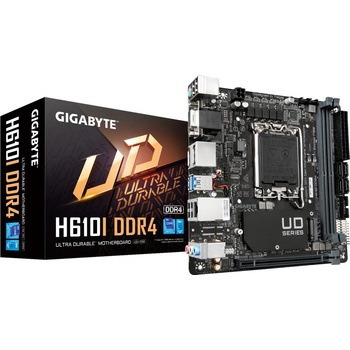

Gigabyte H610I DDR4 rev. 1.0

• Chipset: Intel H610 Express Chipset
• Rozměrový formát: Mini-ITX (17.0cm x 17.0cm)
• Podpora pro procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors
• Patice procesoru: LGA 1700
• Pozice na paměti: 2 x DDR4 DIMM, Dual channel memory architecture
• Podpora pro paměti: DDR4 3200/3000/2933/2666/2400/2133 MHz
• Max.velikost operační paměti: 64 GB
• Podpora pro paměti typu: ECC, XMP
• Grafické výstupy: (Intel HD Graphics)

• 1 x D-Sub port - 1920x1200@60 Hz
• 1 x HDMI 2.1 port - 4096x2160@60 Hz
• 2 x DisplayPort 1.2 - 4096x2304@60 Hz

Zvuková karta: Realtek Audio CODEC *2/4/5.1/7.1-channel

Síťová karta: Intel GbE LAN chip (1 Gbps/100 Mbps)

Rozšiřující sloty: 1 x PCI Express x16 slot, running at x16 (PCI Express 4.0 standard)

SATA: 4 x SATA 6Gb/s connectors

M.2: 1 x M.2 connector

USB: *Interní: *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *2 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports

Interní porty: *1 x 24-pin ATX main power connector *1 x 4-pin ATX 12V power connector *1 x CPU fan header *2 x system fan headers *1 x RGB LED strip header *1 x M.2 Socket 3 connector *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *2 x serial port headers *1 x Clear CMOS jumpe *1 x chassis intrusion header

Externí porty: *1 x PS/2 keyboard/mouse port *2 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x D-Sub port *2 x DisplayPorts *1 x HDMI 2.0 port *1 x RJ-45 port *3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/H610I-DDR4-rev-

• 2 x DisplayPort 1.2 - 4096x2304@60 Hz
  • Zvuková karta: Realtek Audio CODEC
• 2/4/5.1/7.1-channel
  • Síťová karta: Intel GbE LAN chip (1 Gbps/100 Mbps)
  • Rozšiřující sloty: 1 x PCI Express x16 slot, running at x16 (PCI Express 4.0 standard)
  • SATA: 4 x SATA 6Gb/s connectors
  • M.2: 1 x M.2 connector

USB:

• Interní:
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• Externí:
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports

Interní porty:

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 2 x serial port headers
• 1 x Clear CMOS jumpe
• 1 x chassis intrusion header

Externí porty:

• 1 x PS/2 keyboard/mouse port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x D-Sub port
• 2 x DisplayPorts
• 1 x HDMI 2.0 port
• 1 x RJ-45 port
• 3 x audio jacks

• BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
• Stránka výrobce: http://www.gigabyte.com/Motherboard/H610I-DDR4-rev-10#kf
